| Category |
Engine Parts |
| Name |

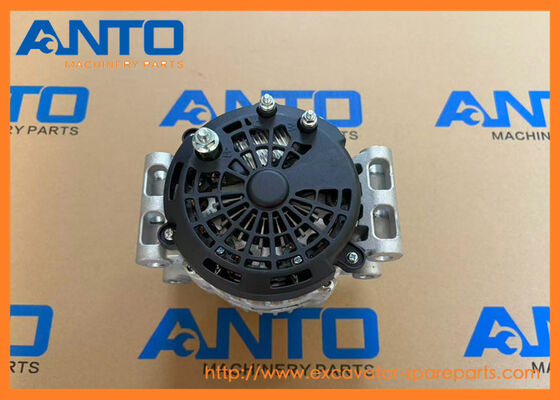

Alternator |
| Parts No |
ZUAC-00506 |
| Machine Number |
R125LCR-9A R140LC9A R145CR9A R160LC9A |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. The engine’s crankshaft drives the alternator pulley via a serpentine belt, rotating the alternator’s rotor (armature) inside the stator (stationary windings) |
| 2. The rotor’s electromagnet (powered by the battery) creates a rotating magnetic field that cuts through the stator windings |
| 3. This induces an alternating current (AC) in the stator windings |
| 4. The integrated rectifier converts AC to direct current (DC) |
| 5. The voltage regulator controls the rotor’s magnetic field strength to maintain a stable 24V DC output, charging the battery and powering the machine’s electrical systems |
| 6. When electrical demand is low (e.g., idle), excess power charges the battery; when demand is high, the alternator supplies power directly |
| Core Functions |
1. Battery Charging: Maintains the 24V battery at full charge, ensuring reliable engine starts and power for auxiliary systems (e.g., cab lights, control panels) |
| 2. Electrical Power Supply: Powers all DC electrical systems during machine operation (hydraulic control valves, safety sensors, air conditioning) |
| 3. Voltage Stabilization: Prevents voltage spikes/drops that could damage sensitive electronics (e.g., engine ECU, monitor displays) |
| 4. Overload Protection: The voltage regulator limits output to avoid damage from short circuits or excessive electrical load |
9-SERIES CRAWLER EXCAVATOR R125LCR-9A R140LC9A R145CR9A R160LC9A R180LC9A Hyundai
- More other alternator applied to HYUNDAI heavey machine
| 21S1-0002 ALTERNATOR |
| HSL600 |
| |
| XJBT-01552 ALTERNATOR ASSY |
| HSL500T |
| |
| 3920618 ALTERNATOR |
| HL780-3 |
| |
| 21L6-00190 ALTERNATOR ASSY |
| HL780-3 |
| |
| XKDE-01564 ALTERNATOR |
| HL740-9, HL740TM-9, HL757-9, HL757-9S, HL757-9SM, HL757TM-9, HL760-9, HL760-9S, HL770-9, HL770-9S |
| |
| 21EA-00040 ALTERNATOR ASSY |
| HL740-3, HL750, HL750-3, HL760, HL760-3, R130LC, R130LC3, R130W, R170W3, R180LC3, R200W2, R210LC3, R210LC3LL, R280LC, R290LC, R290LC3, R290LC3LL |
| |
| 21L8-00090 ALTERNATOR ASSY |
| HL720-3, HL7303, HL730TM3 |
| |
| 21L1-0007 ALTERNATOR |
| HL35C |
| A25D, A25E, A30D, A30E, A35F, A35F FS, A40E, A40E FS, A40F, A40F FS, EC700C, EC700CHR, G900 MODELS, L350F |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
ZUAC-00506 |
[1] |
ALTERNATOR |
|
| 2 |
ZUAC-00507 |
[4] |
SCREW |
|
| 3 |
ZUAC-00508 |
[1] |
BRACKET-ALTERNATOR |
|
| 4 |
@ |
[1] |
BRACKET-ALTERNATOR |
|
| 5 |
ZUAC-00509 |
[2] |
DOWEL |
|
| 6 |
ZUAC-00125 |
[4] |
SCREW |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
