| Category |
Fuel Supply Piping, Fuel Piping |
| Name |

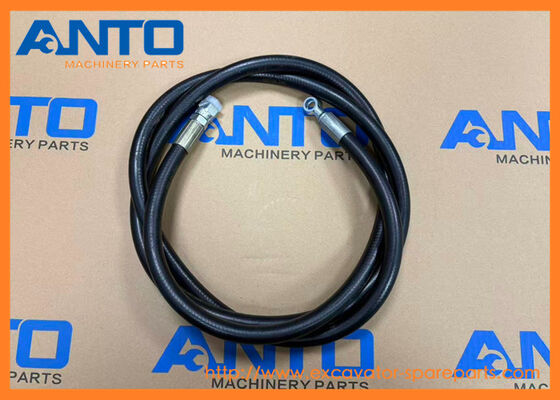

Hose |
| Parts No |
20Y-04-41414 20Y0441414 |
| Machine Number |
PC200 PC210 PC220 PC230NHD PC240 PC270 PC290 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Pressurized hydraulic oil (from the main pump) flows into the inner tube of the hose at up to 35 MPa |
| 2. The steel wire braid reinforcement counteracts internal pressure, preventing the hose from expanding or bursting |
| 3. The flexible design allows the hose to bend and flex as the excavator’s boom/arm moves, maintaining unobstructed oil flow |
| 4. The CR outer cover shields the inner tube/braid from abrasion, debris, and environmental damage |
| 5. Crimped fittings create a permanent, leak-proof connection to mating components (valves/cylinders), ensuring system pressure retention |
| Core Functions |
1. High-Pressure Oil Conduction: Delivers pressurized hydraulic oil to power the excavator’s boom, arm, and bucket cylinders – enabling heavy lifting/digging operations |
| 2. Leak Prevention: Factory-sealed fittings and robust inner tube eliminate hydraulic oil loss, avoiding pressure drops and safety hazards (slippery job site surfaces) |
| 3. Dynamic Flexibility: Accommodates movement of the excavator’s working equipment without kinking or restricting oil flow |
| 4. Component Protection: Outer cover blocks debris from damaging the reinforcement, extending hose life and reducing risk of hydraulic system contamination |
EXCAVATORS PC200 PC200LL PC210 PC220 PC230NHD PC240 PC270 PC290
MOBILE CRUSHERS AND RECYCLERS BR380JG Komatsu
- More other hose applied to KOMATSU heavey machine
| 02762-00325 HOSE |
| AIR, BZ210, PC200, PC200LL, PC210, PC220, PC220LL, PC230NHD, PC240, PC270, PC290, PC300, PC300HD, PC340, PC350, PC360, PC400, PC450, PRESSURE, RAIN |
| |
| 02762-00335 HOSE |
| AIR, BZ210, D155A, D65EX, D85EX, D85PX, DRAWBAR,, PC200, PC220, PC240, PC270, PC290, PC300, PC350, PRESSURE, RAIN, WA1200 |
| |
| 20Y-04-41281 HOSE |
| HB205, HB215, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290 |
| |
| 09483-10311 HOSE |
| D155A, HM350, HM400, PC200, PC220, PC270, PC360, PC390, PC390LL, PC600, WA600 |
| |
| 20Y-01-41320 HOSE |
| PC200, PC220, PC270 |
| |
| 20Y-01-41110 HOSE |
| PC200, PC200LL, PC210, PC220, PC220LL, PC230NHD, PC240, PC270, PC290 |
| |
| 07084-01AA9 HOSE |
| BR550JG, HB205, HB215, PC200, PC220, PC240, PC270, PC290 |
| |
| 20Y-62-51321 HOSE |
| PC200, PC210, PC220, PC230NHD, PC240, PC270, PC290 |
| |
| 20Y-64-84130 HOSE |
| PC200 |
| |
| 20Y-62-51240 HOSE |
| PC200, PC200LL, PC220, PC240, PC270, PC290 |
| |
| 20Y-03-41880 HOSE |
| GD755, PC200, PC200LL, PC210, PC220, PC240, PC270, PC290 |
| |
| 20Y-04-41373 HOSE |
| PC200, PC200LL, PC210, PC220, PC220LL, PC230NHD, PC240, PC270, PC290 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
02762-00335 |
[1] |
Hose Komatsu |
0.9 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 2 |
02762-00325 |
[1] |
Hose Komatsu |
0.68 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 3 |
02896-11009 |
[2] |
O-ring Komatsu China |
0.01 kg. |
| |
|
|
["SN: 30117-UP"] analogs:["R0289611009", "0286911009"] |
|
| 4 |
07206-30812 |
[2] |
Bolt, Joint Komatsu |
0.035 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 5 |
07005-01212 |
[4] |
Seal, Washer Komatsu China |
0.01 kg. |
| |
|
|
["SN: 30117-UP"] analogs:["6731715870", "R0700501212"] |
|
| 6 |
20Y-04-41414 |
[1] |
Hose Komatsu |
0.58 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 7 |
20Y-04-41373 |
[1] |
Hose Komatsu |
0.44 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 8 |
08034-20519 |
[1] |
Band Komatsu |
0.001 kg. |
| |
|
|
["SN: 30117-UP"] analogs:["2260611130", "885180010"] |
|
| 9 |
20Y-04-41321 |
[1] |
Bracket Komatsu China |
|
| |
|
|
["SN: 30117-UP"] |
|
| 10 |
04434-51912 |
[1] |
Clip Komatsu |
0.02 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 11 |
01010-81225 |
[3] |
Bolt Komatsu |
0.074 kg. |
| |
|
|
["SN: 30117-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] |
|
| 12 |
01643-31232 |
[3] |
Washer Komatsu |
0.027 kg. |
| |
|
|
["SN: 30117-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] |
|
| 13 |
04435-51812 |
[1] |
Clip Komatsu |
0.056 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 14 |
154-979-1480 |
[1] |
Collar Komatsu China |
|
| |
|
|
["SN: 30117-UP"] |
|
| 15 |
01010-81275 |
[1] |
Bolt Komatsu |
0.082 kg. |
| |
|
|
["SN: 30117-UP"] analogs:["0101051275"] |
|
| 17 |
195-33-11220 |
[1] |
Spacer Komatsu |
0.073 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 18 |
01010-81250 |
[1] |
Bolt Komatsu |
0.061 kg. |
| |
|
|
["SN: 30117-UP"] analogs:["0101051250"] |
|
| 26 |
20Y-04-41421 |
[1] |
Plate Komatsu China |
|
| |
|
|
["SN: 30117-UP"] |
|
| 29 |
01010-81235 |
[1] |
Bolt Komatsu |
0.048 kg. |
| |
|
|
["SN: 30117-UP"] analogs:["0101051235", "01010E1235", "801015136"] |
|
| 31 |
198-06-53560 |
[1] |
Cushion Komatsu China |
|
| |
|
|
["SN: 30117-UP"] |
|
| 32 |
04434-52512 |
[1] |
Clip Komatsu |
0.034 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 33 |
04434-51812 |
[1] |
Clip Komatsu |
0.019 kg. |
| |
|
|
["SN: 30117-UP"] |
|
| 34 |
21T-38-71260 |
[1] |
Bracket Komatsu China |
|
| |
|
|
["SN: 30117-UP"] analogs:["21T3871260NK"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
