Dettagli:
Termini di pagamento e spedizione:
|
Categoria: | Parti di trazione di viaggio | Numero parte: | 1010474 |
---|---|---|---|
Nome prodotto: | Vettore | Numero della macchina: | EX300EX300-2 |
Applicazione: | Escavatore | Tempi di consegna: | 1-3 giorni per la consegna |
Imballaggio: | Cartone di esportazione standard | ||
Evidenziare: | Hitachi excavator spare parts EX300,Carrier excavator fittings EX300-2,Excavator replacement parts with warranty |

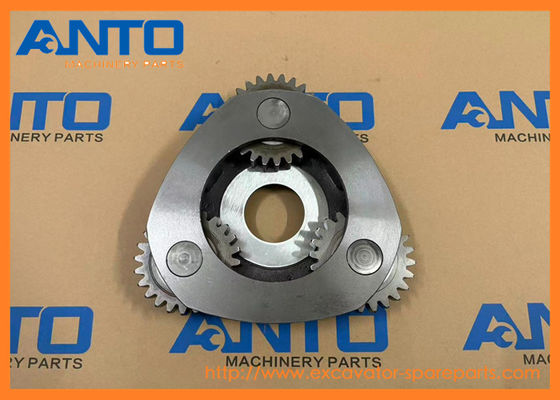

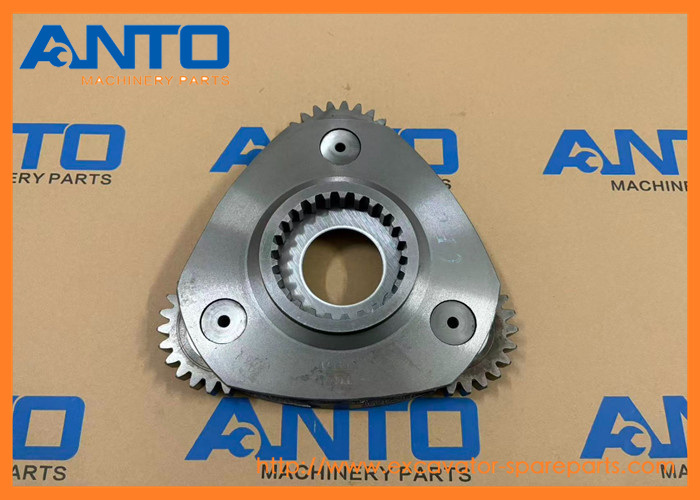

1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2
Specifiion
Category | Travel Drive Parts |
Name | Carrier |
Parts No | 1010474 |
Machine Number | EX300 EX300-2 |
Lead time | 1-3 DAYS |
Quality | Brand new, OEM quality |
MOQ | 1 PCS |
Means of transport | By sea/air, DHL FEDEX UPS TNT |
Packing | As request or standard packing |
1.Planetary Gear Mounting: Secures planetary gears in precise alignment, ensuring efficient torque transfer between the sun gear and output flange. Misalignment (from a damaged Carrier) causes gear tooth chipping and uneven wear.
2.Torque Transmission: Acts as the "middleman" in the swing drive’s power flow, converting the planetary gears’ orbital motion into rotational torque for the upper structure.
3.Load Bearing: Supports the combined weight of the upper structure and dynamic loads from swing operations (e.g., digging while rotating), preventing the swing drive from collapsing or shifting.
4.Component Protection: Shields internal gears and bearings from external debris (e.g., dirt, rocks) and guides lubricating oil to critical contact points, extending the swing drive’s service life.
EXCAVATORS EX300 EX300-2 Hitachi
1014809 CARRIER |
270C LC JD, CX700HD, CX900, CX900-2, CX900HD, EX270-5, EX280H-5, EX300-2, EX300-3, EX300-3C, EX310H-3C, SCX700HD, SCX900, SCX900HD, SCX900HD-C, ZX270, ZX270-HHE, ZX280LC-AMS, ZX280LC-HCME, ZX300W |
1010468 CARRIER |
EX270, EX300, EX300-2 |
1014808 CARRIER |
270C LC JD, CX700HD, CX900, CX900-2, CX900HD, EX270-5, EX280H-5, EX300-2, EX300-3, EX300-3C, EX310H-3C, SCX700HD, SCX900, SCX900HD, SCX900HD-C, ZX270, ZX270-HHE, ZX280LC-AMS, ZX280LC-HCME, ZX300W |
1010475 CARRIER |
EX300, EX300-2 |
2023371 CARRIER |
EX270, EX300 |
2024993 CARRIER |
EX270, EX300 |
2033936 CARRIER |
EX270, EX300 |
0952102 CARRIER (1) |
SCX700-2, SCX800-2, SCX800HD-2 |
563G0-60121 CARRIER |
ZW220, ZW220-DO |
56190-71811 CARRIER ASSY |
LX70-7, ZW100, ZW100-DO, ZW100-G |
2031036 CARRIER |
EX60-2, EX60-3, EX60LCK-3, EX60LCT-3, EX60T-2, EX60WD-2, EX75UR, EX75UR-3, EX75URLC-3 |
2016633 CARRIER |
UH103 |
1035047 CARRIER |
ZX670LC-5B, ZX670LC-5G, ZX670LCH-5B, ZX670LCH-5G, ZX670LCR-5G |
1027160 CARRIER |
ZX200, ZX225US, ZX225US-E, ZX225US-HCME, ZX225USR, ZX225USR-E, ZX225USRK, ZX230, ZX230-HHE, ZX240H, ZX240K, ZX240LC-HHE, ZX250-HCME, ZX450 |
1019147 CARRIER |
CHR70, EX200-3, EX200-3C, EX200-3E, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5HHE, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200K-3, EX200LC-5HHE, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX2... |
1026081 CARRIER |
EX135UR-5, EX135US-5, EX135USR, EX135USRK, EX140US-5 |
1008731 CARRIER |
UH103, UH123 |
0887201 CARRIER |
UCX300, ZX210W, ZX210W-AMS, ZX300W |
Pos. | Part No | Qty | Parts name | Comments |
0 | 9069422 | [1] | MOTOR;OIL | Y 9082057 |
0 | 9082057 | [1] | MOTOR;OIL | |
00-52. | 9069550 | [2] | TRAVEL DEVICE ASS'Y | Y 9096486 |
00-59. | 9096486 | [2] | TRAVEL DEVICE ASS'Y | |
00A. | 9071903 | [1] | VALVE;BRAKE | Y 9082178 |
00A. | 9082178 | [1] | VALVE;BRAKE | |
2 | 1010465 | [1] | HOUSING | |
3 | 4066695 | [1] | SEAL;GROUP | |
4 | 4192975 | [2] | BRG.;ROL. | |
5 | 1010466 | [1] | DRUM | |
6 | 1010467 | [1] | SPROCKET | |
7 | A590920 | [16] | WASHER;SPRING | |
8 | J932060 | [16] | BOLT | |
10 | 3036256 | [1] | NUT | |
11 | 4192974 | [1] | PLATE;LOCK | |
12 | J901225 | [2] | BOLT | |
14 | 1010468 | [1] | CARRIER | |
15 | 3036257 | [3] | GEAR;PLANETARY | |
16 | 4192976 | [6] | BRG.;NEEDLE | |
17 | 4201913 | [6] | PLATE;THRUST | Y 4219595 |
17 | 4219595 | [6] | PLATE;THRUST | |
18 | 4192978 | [3] | PIN | |
19 | 4192021 | [3] | PIN;SPRING | |
20 | 3036258 | [1] | GEAR;SUN | |
23 | 1010473 | [1] | GEAR;RING | |
24 | A590916 | [26] | WASHER;SPRING | |
25 | J931645 | [24] | BOLT | |
27 | 1010475 | [1] | CARRIER | |
28 | 4192979 | [2] | SPACER | |
29 | 3036264 | [3] | GEAR;PLANETARY | |
30 | 4190117 | [3] | BRG.;NEEDLE | |
31 | 4192982 | [6] | PLATE;THRUST | |
32 | 4144558 | [3] | PIN | |
33 | 4144525 | [3] | PIN;SPRING | |
34 | 3036266 | [1] | GEAR;SUN | |
35 | 1010474 | [1] | CARRIER | |
37 | 3036265 | [3] | GEAR;PLANETARY | |
38 | 4108021 | [3] | BRG.;NEEDLE | |
39 | 4192983 | [6] | PLATE;THRUST | |
40 | 4192977 | [3] | PIN | |
41 | 4192020 | [3] | PIN;SPRING | |
42 | 2023188 | [1] | SHAFT;PROP. | |
43 | 4204756 | [1] | CAP | |
44 | 2024646 | [1] | COVER | P 2028461 |
44 | 2028461 | [1] | COVER | P 2031912 |
44 | 2028461 | [1] | COVER | P 4278011 |
44 | 2028461 | [1] | COVER | P 4278168 |
44 | 2028461 | [1] | COVER | P 930451 |
44 | 2031912 | [1] | COVER | |
44 | 2031913 | [1] | COVER | |
45 | A590912 | [12] | WASHER;SPRING | |
47 | 4245797 | [3] | PLUG | |
47 | 94-2013 | [2] | PLUG | |
47 | 94-2013 | [3] | PLUG | Y 4245797 |
49 | J931685 | [2] | BOLT | |
50 | 4193063 | [1] | O-RING | |
52 | J011230 | [12] | BOLT;SEMS | |
52 | M221228 | [12] | BOLT | I J011230 |
54 | M492564 | [2] | SCREW;DRIVE | |
55 | 3053559 | [1] | NAME-PLATE | |
57 | 4277474 | [1] | PIN;STOPPER | |
57 | 4278011 | [1] | PIN;STOPPER | |
58 | 4278168 | [1] | BRG.;BALL | |
59 | 930451 | [1] | RING;RETAINING | |
60 | J932080 | [34] | BOLT | |
61 | A590920 | [34] | WASHER;SPRING |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
