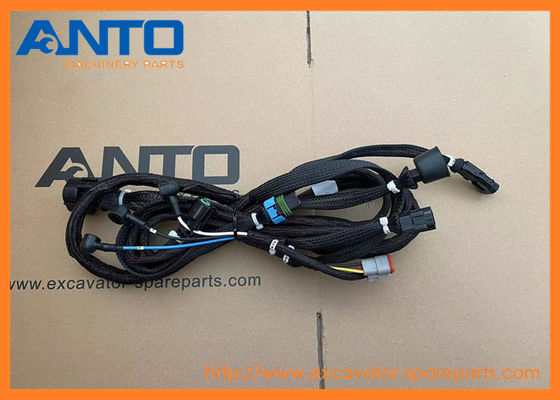

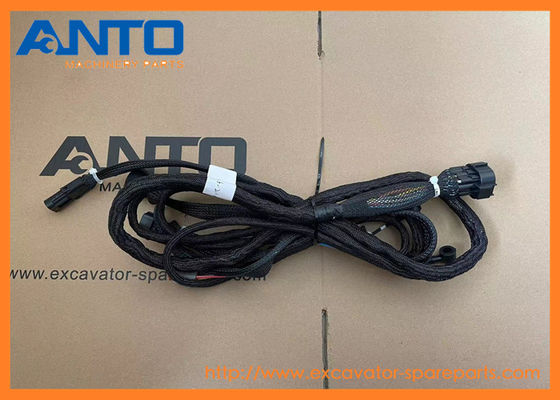

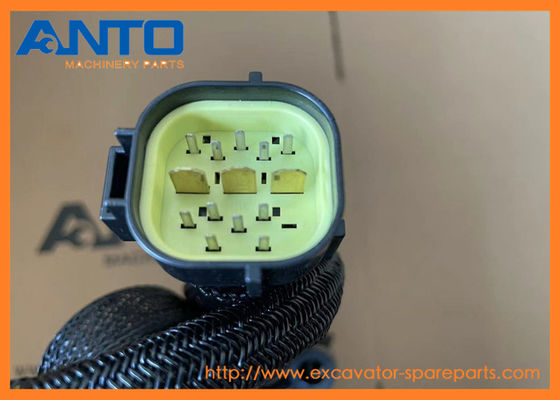

21N621033 21N6-21033 Harness Excavator Engine Parts Fitting For HYUNDAI R210LC7 R250LC7

• 21N621033 21N6-21033 Harness Excavator Engine Parts Fitting For HYUNDAI R210LC7 R250LC7

• Specification

• Function

1.Power Distribution
It delivers electrical power from the vehicle’s battery or main electrical system to the instrument cluster. This includes power for the cluster’s backlighting, digital displays, analog gauges, and internal circuitry, ensuring all visual elements remain operational.

2.Signal Transmission
It acts as a communication pathway for critical data between sensors/control units and the instrument cluster:
Vehicle performance data: Transmits signals from sensors measuring speed, engine RPM, fuel level, coolant temperature, and odometer readings to drive the corresponding gauges or digital displays.
Warning/indicator signals: Carries data from the Engine Control Unit (ECU) and other systems (e.g., ABS, airbags, traction control) to trigger warning lights (e.g., check engine, low fuel, seatbelt reminder) on the cluster.

• Application

• More harness parts Applied To HYUNDAI machine

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
1	21N6-21020	[1]	HARNESS-ENGINE FRONT
1	21N6-21021	[1]	HARNESS-ENGINE FRONT
2	21N6-21032	[1]	HARNESS-ENGINE REAR
2	21N6-21033	[1]	HARNESS-ENGINE REAR
3	S037-122052	[6]	BOLT-W/WASHER
4	21E9-00170	[6]	CLIP-HARNESS
5	21EH-30720	[1]	STRAP-EARTH
6	21N6-10190	[1]	BRACKET-START RY
7	E225-0006	[1]	RELAY-HEATER
8	S035-061622	[4]	BOLT-W/WASHER
9	21N6-30120	[1]	RELAY-START
N10.	21E6-40030	[1]	ALTERNATOR ASSY
10	21Q6-41000-K	[1]	ALTERNATOR KIT
10-1.	21Q6-41000	[1]	ALTERNATOR ASSY	NOT SHOWN
10-2.	21N8-43000	[1]	HARNESS-ALTERNATOR	NOT SHOWN
11	21E1-21120	[1]	WIRE LINK-ALTERNATOR
12	S593-000702	[13]	CLIP-HARNESS
13	S593-000902	[2]	CLIP-HARNESS
14	S035-081622	[2]	BOLT-W/WASHER
15	S552-050203	[15]	CLAMP-BAND
16	21L8-10360	[2]	CABLE(ALT-EARTH)
17	21N6-20040	[1]	CABLE(ALT-STARTER)
17	21N6-20041	[1]	CABLE(ALT-STARTER)
18	21N6-21240	[1]	CABLE(AIR HEAT-HEAT RY)
19	21EA-00191	[1]	HARNESS-EXT,START RY
21	21E3-0042	[1]	SENSOR-SPEED
21	21Q6-15800	[1]	SENSOR-SPEED
22	21E3-5001	[1]	SWITCH-ENG OIL PRESS
23	21N7-10070	[1]	ADAPTER-OIL PRESSURE
24	S035-101612	[1]	BOLT-W/WASHER
25	21EN-40100	[1]	SENDER-TEMP
26	21EA-50171	[1]	FITTING-TEMP SW
27	21EA-50260	[1]	PACKING-TEMP SW
28	21N8-11170	[1]	HARNESS-PUMP PS
29	21EG-32200	[2]	SENDER-PRESSURE	P1,P2 PUMP, OPT
30	21EG-32210	[1]	SENDER-PRESSURE	P3 PUMP, OPTION
31	S205-061002	[2]	NUT
32	21EA-00201	[1]	BRACKET-TACHO
34	S035-081622	[1]	BOLT-W/WASHER
N.	@	[AR]	NOT SUPPLIED PARTS



• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
